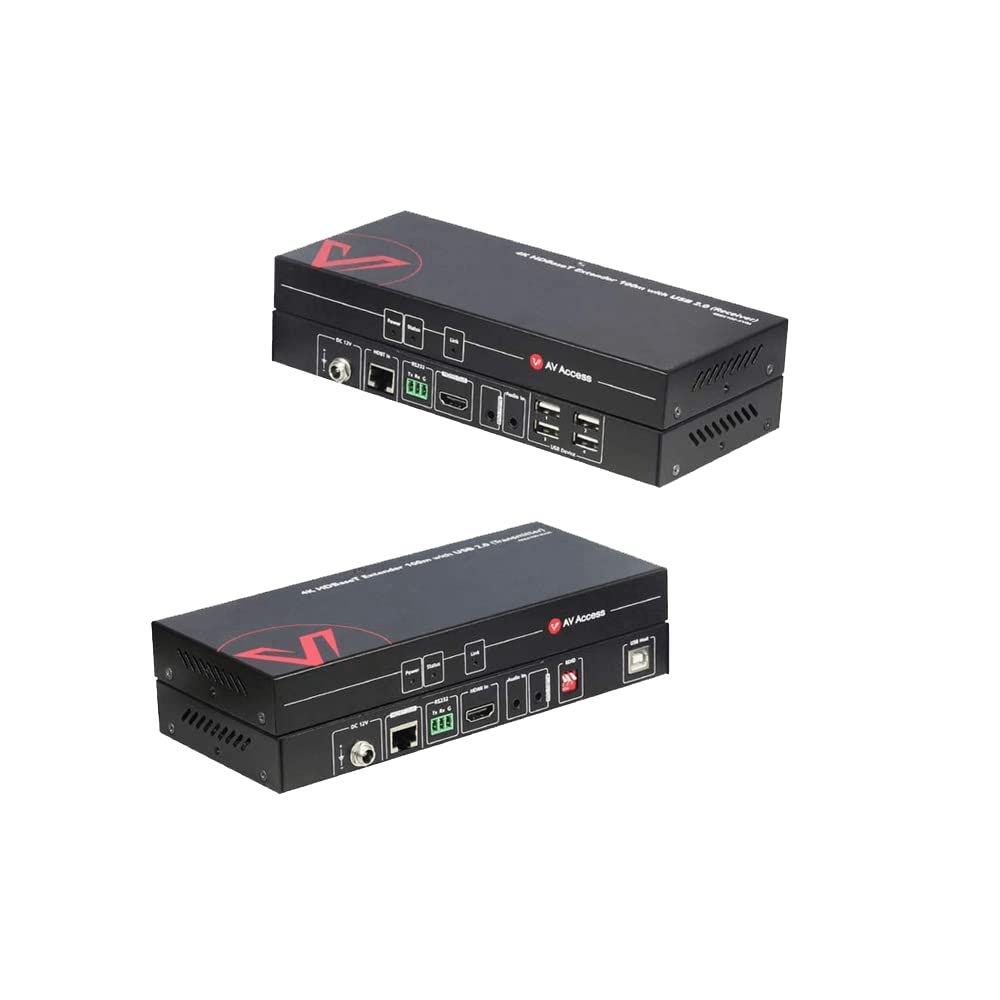

HDMI USB Extender KVM, 100m 4K 60Hz Over Cat5e/6a, 4 Ports USB2.0, RS232, POE Y481325
Sale price
$27.50
Regular price $110.49
Skip to product information
【@ @ 】HDBaseT2.0 uncompressed technology. Extends FULL UHD 4K@60Hz(YUV4:2:0 8bit) HDMI signal over single Cat 6/6a/7 cables up to 330ft/100m. With audio input and output port on transmitter and receiver, supports bi-directional 3.5mm stereo pass through.
【- . 】It provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.
【 】No video loss, no time delay, with one way PoE(from transmitter to receiver), RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver;
【!!】 ' ; When connect with 2 or above USB devices on receiver, please make sure that the total power consumption less than 5V 0.5A.
【】Certificated by FCC, CE. Built-in surge/Lightning protection -Superior ESD protection: +/- 8KV (Air-gap discharge) +/- 4KV (contact discharge); 3 Year Warranty, and easy-to-reach friendly customer service (AV Access).
HDMI USB Extender KVM, 100m 4K 60Hz Over Cat5e/6a, 4 Ports USB2.0, RS232, POE Y481325
Sale price
$27.50
Regular price $110.49
Shipping calculated at checkout.
【@ @ 】HDBaseT2.0 uncompressed technology. Extends FULL UHD 4K@60Hz(YUV4:2:0 8bit) HDMI signal over single Cat 6/6a/7 cables up to 330ft/100m. With audio input and output port on transmitter and receiver, supports bi-directional 3.5mm stereo pass through.
【- . 】It provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.
【 】No video loss, no time delay, with one way PoE(from transmitter to receiver), RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver;
【!!】 ' ; When connect with 2 or above USB devices on receiver, please make sure that the total power consumption less than 5V 0.5A.
【】Certificated by FCC, CE. Built-in surge/Lightning protection -Superior ESD protection: +/- 8KV (Air-gap discharge) +/- 4KV (contact discharge); 3 Year Warranty, and easy-to-reach friendly customer service (AV Access).
| U2EX50 | HDEX80-KVM | 4KIP100-KVM | 4KEX100-KVM | 4KEX100-KVM-H2 | 4KEX100-DP-KVM | |
|---|---|---|---|---|---|---|
| Video Interface | x | HDMI | HDMI | HDMI | HDMI | DisplayPort |
| Video Resolution | × | 1080p @60Hz | 4K@30Hz 1080p@120Hz | 4K@60Hz 4:2:0 1080p@120Hz | 4K@60Hz | 4K@30Hz 1080p@120Hz |
| Transmission Range | 165ft (50m) | 260ft (80m) | 330ft (100m) | 330ft (100m) | 330ft (100m) | 330ft (100m) |
| USB Ports | 4 x USB 2.0 | 2 x USB 2.0 | 3 x USB 2.0 | 4 x USB 2.0 | 4 x USB 2.0 | 2 x USB 2.0 |
| IR | × | × | × | × | × | |
| RS232 | × | × | × | |||
| POE | Uni-Direction | Bi-Direction | × | Uni-Direction | Uni-Direction | Uni-Direction |
| Router/Ethernet Switch Compatible | × | × | Yes. Up to 16 Sets | × | × | × |
| HDMI Version | x | 1.3 | 1.4 | 1.4 | 2.0 | DP 1.2 |
| HDCP Version | x | 1.4 | 1.4 | x | 2.2 | 1.4 |
