Reduced Pressure Zone Assembly U115

Reduced Pressure Zone Assembly U115

$32.50 $115.94
Skip to product information
Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
  • Reduced Pressure Zone Assembly U115
Reduced Pressure Zone Assembly U115

Reduced Pressure Zone Assembly U115

$32.50 $115.94
Shipping calculated at checkout.

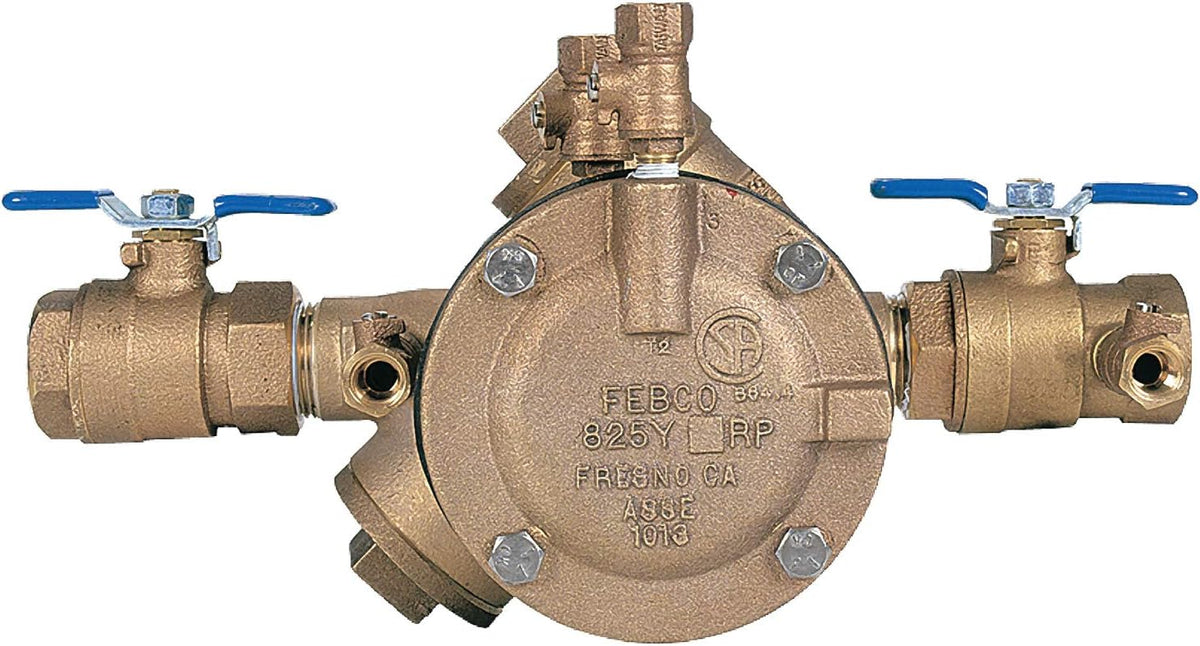

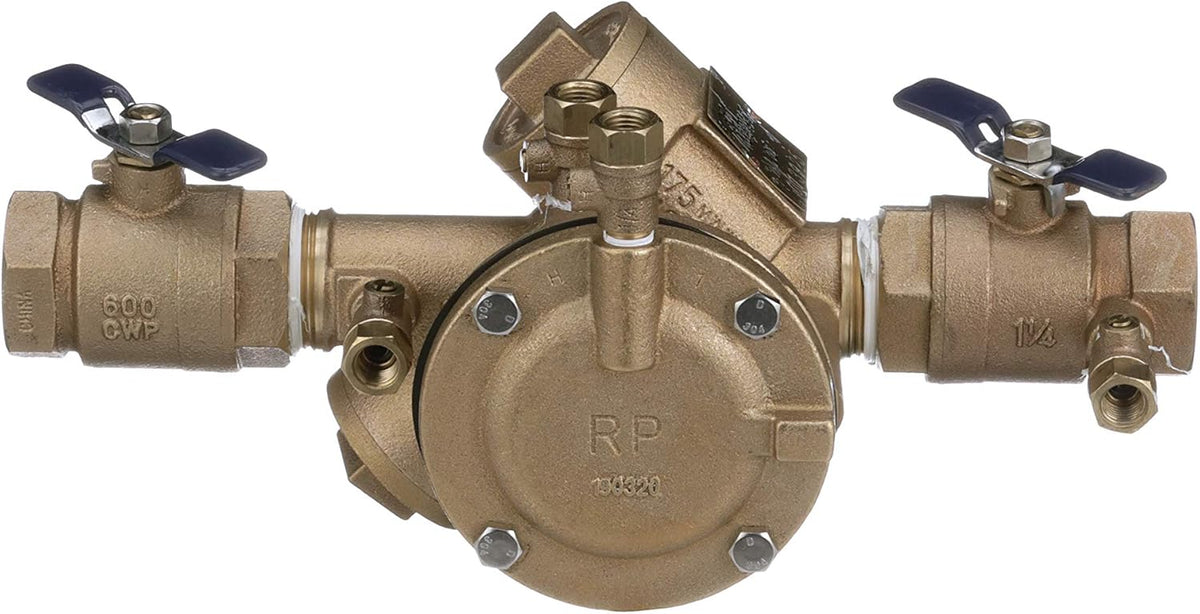

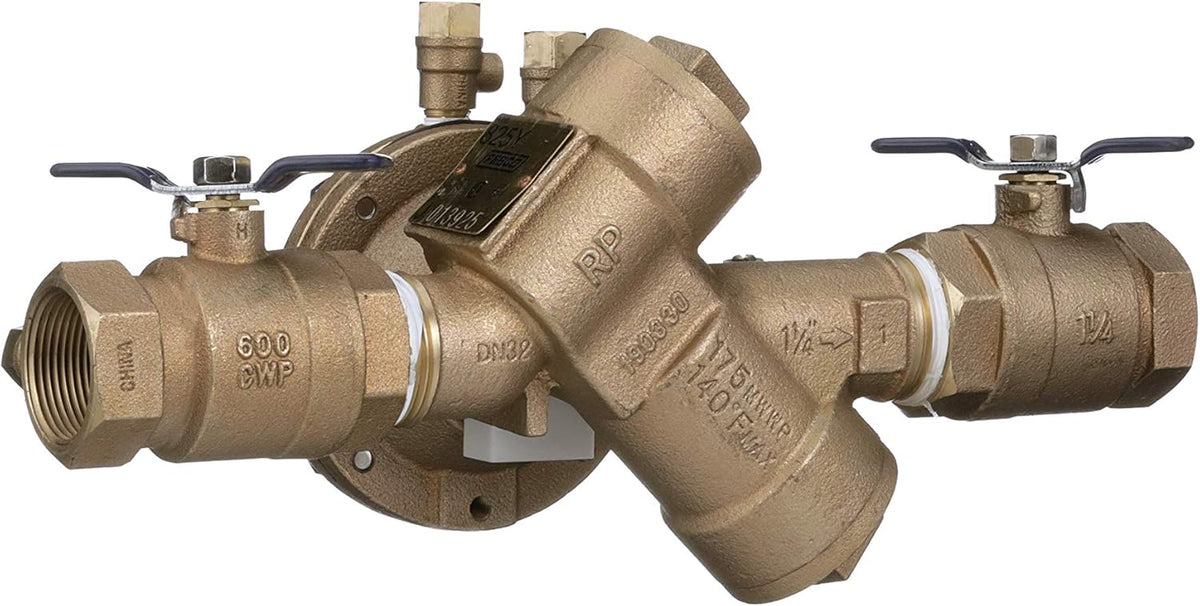

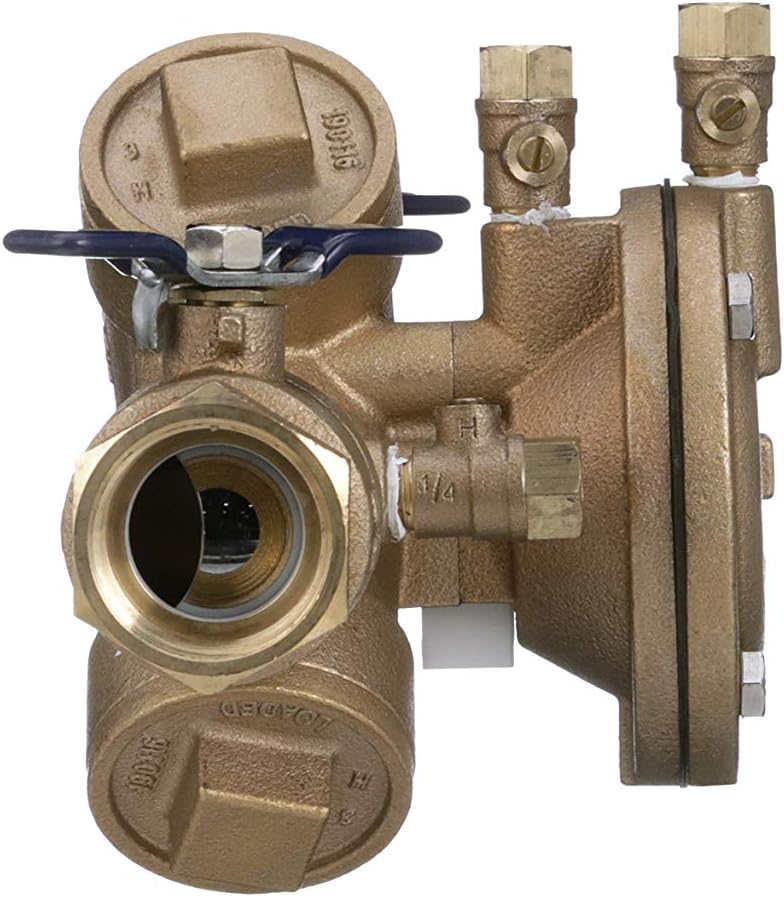

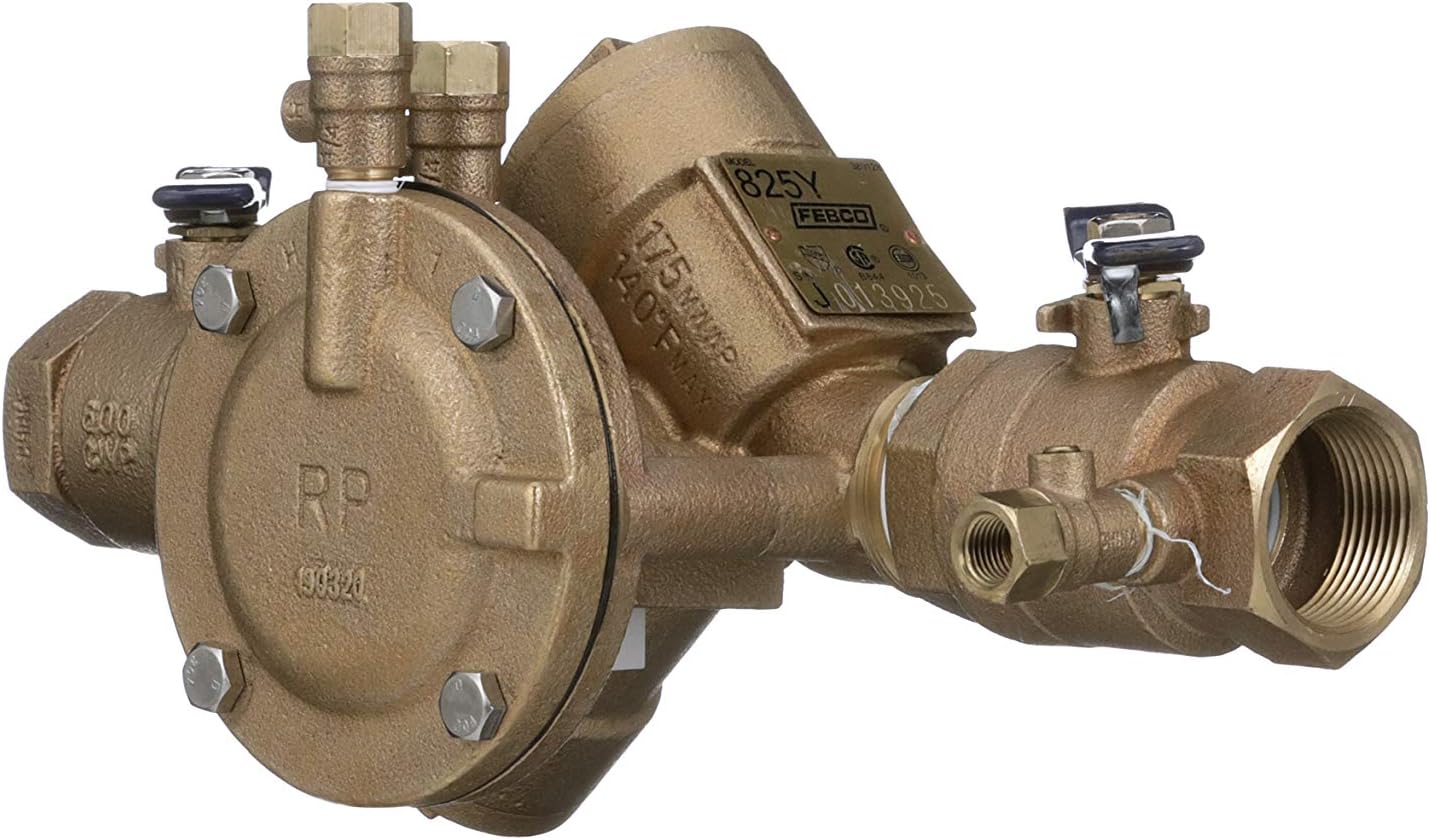

Febco 825FBV 1 1/4 inch 825y reduced pressure zone assemblyMaximum working pressure 175PsiHydrostatic test pressure 350 psiTemperature range 32 - 140 degrees

The Febco 825FBV Quarter Turn 825Y Reduced Pressure Zone Assembly automatically reduces pressure between check valves to at least 5psi lower than inlet pressure. Offers low head loss for flexibility in installation. Operates under maximum working pressure of 175Psi and temperatures of 32 to 140 degrees F. Meets tiol plumbing codes and water authority requirements for non-potable service applications. Weighs 15.65 pounds. From the manufacturer: Meets all specifications of AWWA, ASSE, CSA. Available in sizes from 3/4 to 2 in.
