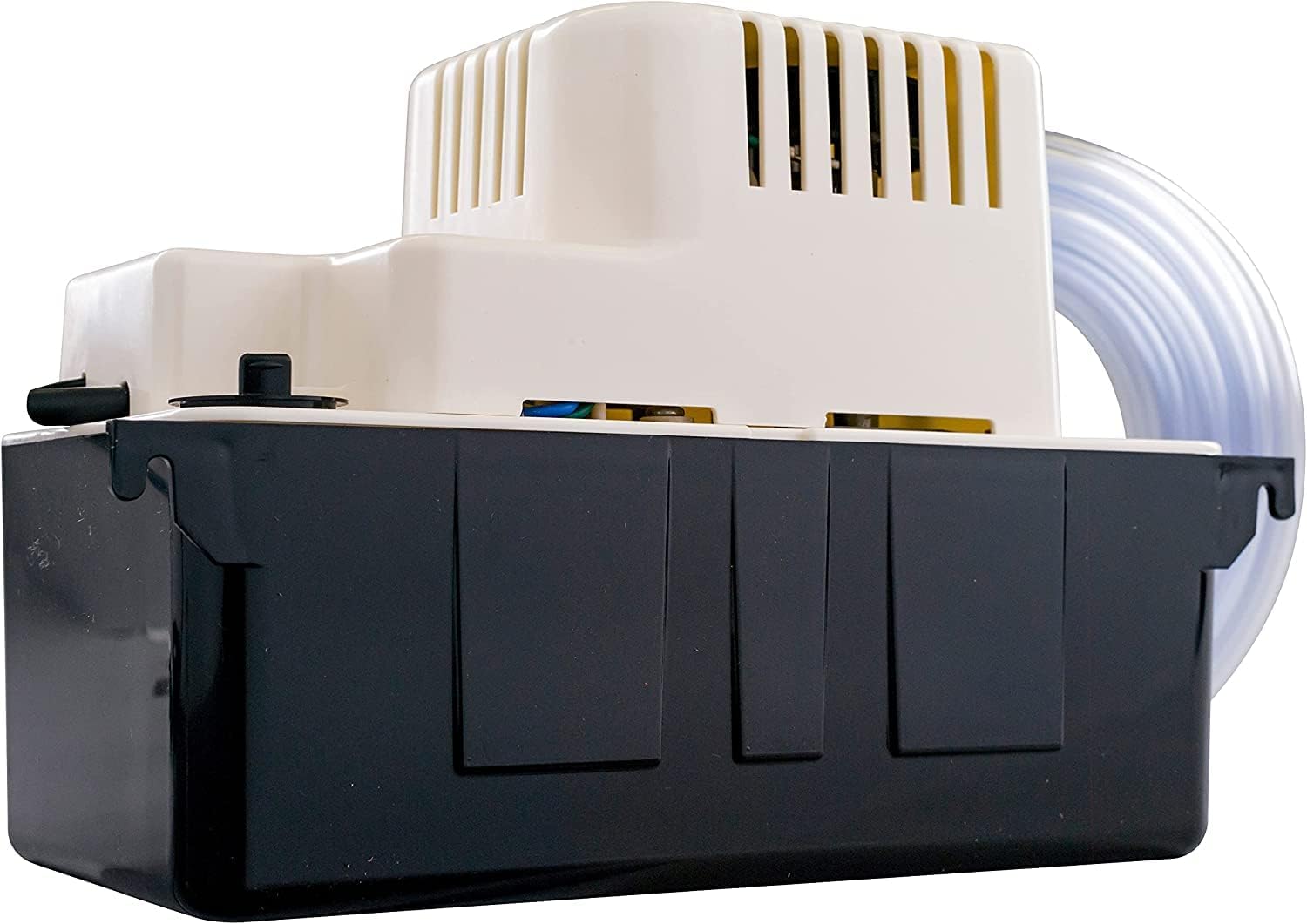

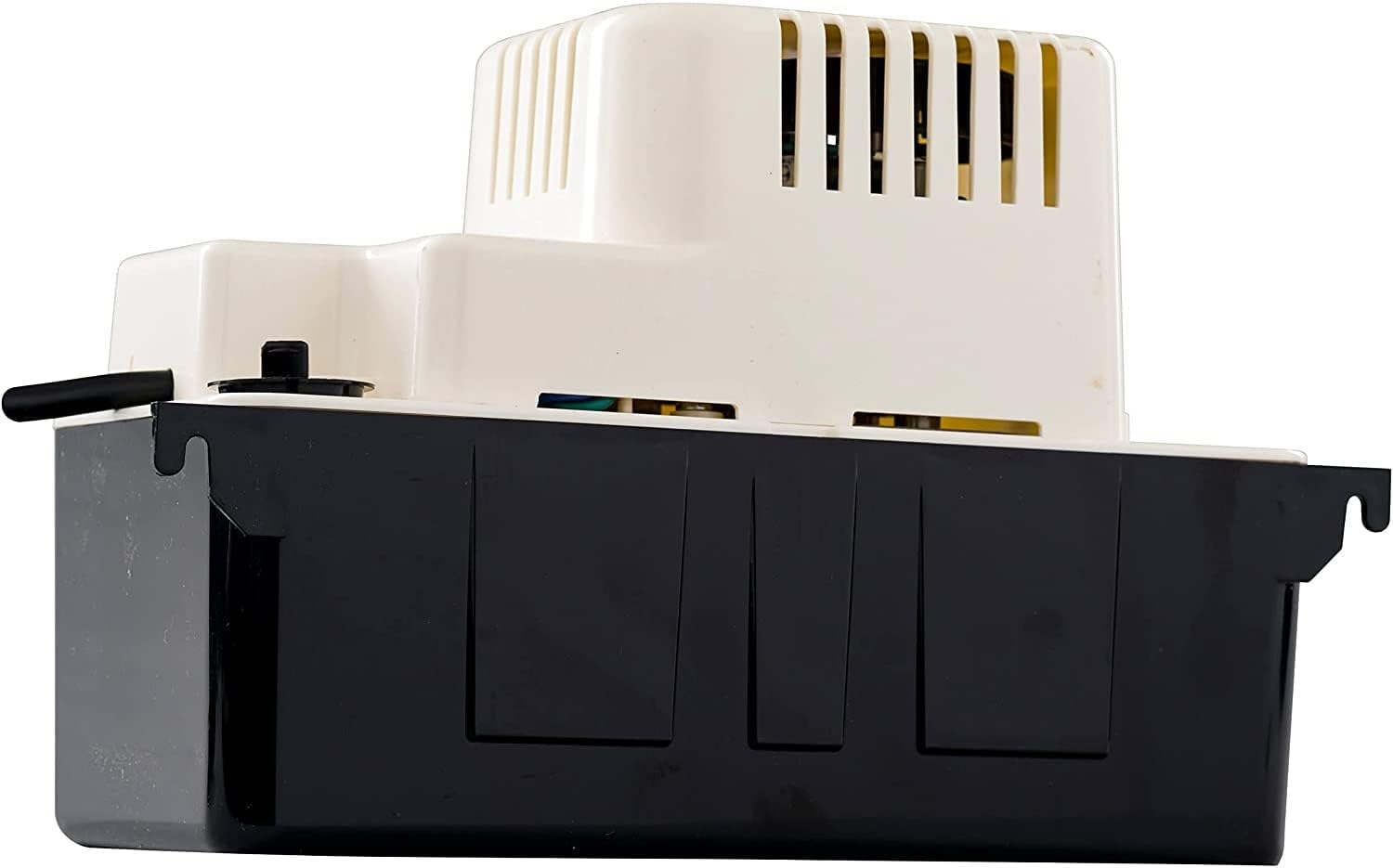

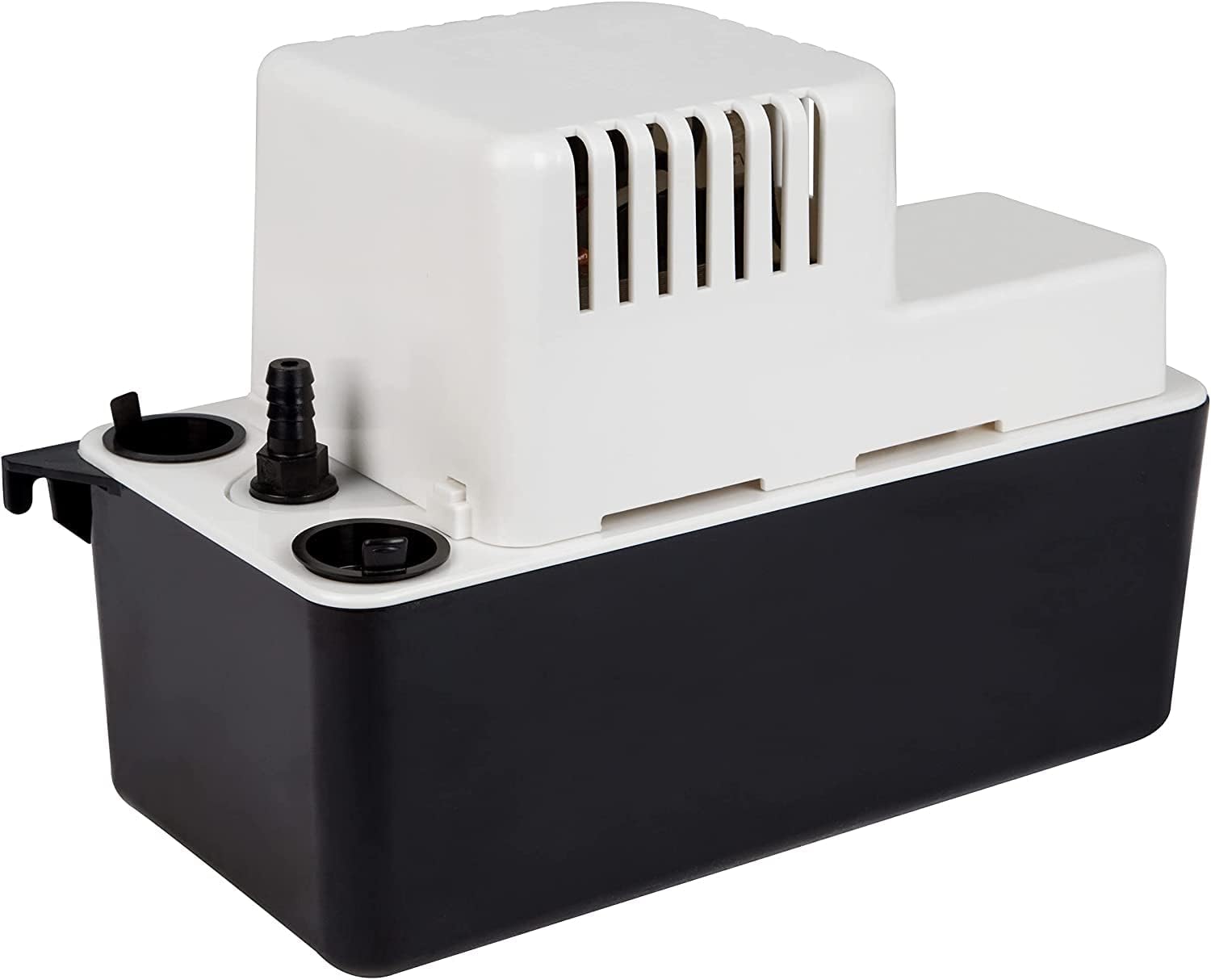

Automatic Condensate Removal Pump with Safety Switch and Tubing, White/Black, Pack of 2 V198

Automatic Condensate Removal Pump with Safety Switch and Tubing, White/Black, Pack of 2 V198

Sale price  $23.99 Regular price $75.92
Skip to product information
Automatic Condensate Removal Pump with Safety Switch and Tubing, White/Black, Pack of 2 V198

Automatic Condensate Removal Pump with Safety Switch and Tubing, White/Black, Pack of 2 V198

Sale price  $23.99 Regular price $75.92
Shipping calculated at checkout.
PlasticAUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiersHIGH PERFORMANCE MOTOR: 1/30 HP, 1.5 Amps, 93 Watts, 115 Volts, 60 Hz, thermally protected, fan-cooled motor; CSA listed in the USA and CanadaBUILT TO LAST:  stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standardsINCLUDES SAFETY SWITCH and 20-FT VINYL TUBING: safety switch can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflowSPECIFICATIONS: 3/8-inch OD barbed discharge, 80 GPH at 1-foot head, 20 foot shut-off, up to 8.7 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140 F, equipped with safety switch, 20-ft. tubing included

Product Description

The Little Giant 115 Volt, 1/30 HP VCMA-20ULST is ideal for removing condensate from HVAC equipment including air conditioners, de-humidifiers, condensing boilers, and high-efficiency oil or gas-fired furnaces. This unit is comes with a safety switch that can be wired to the appliance to turn the appliance off or can be wired with an audible alarm (not included). 20-ft. of 3/8-inch I.D. vinyl discharge tubing included.

From the Manufacturer

Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

Little Giant VCMA-20ULS 554425 Little Giant VCMA-20ULST 554435 Little Giant VCMA-20ULT 554431 Little Giant VCMA-20UL 554451 Little Giant VCMA-20ULST 554461
1/30 HP Motor
80 GPH @ 1 Ft.
Volts 115 115 115 230 230
1/2 Gallon Tank Capacity
6 Ft. Power Cord Length
Safety Switch
Includes 20 Ft. 3/8" ID Tubing
Shut-off 20 Ft. 20 Ft. 20 Ft. 17 Ft. 17 Ft.
Dimensions 5 inches deep x 11 inches wide x 7 inches high 5 inches deep x 11 inches wide x 7 inches high 5 inches deep x 11 inches wide x 7 inches high 5 inches deep x 11 inches wide x 7 inches high 5 inches deep x 11 inches wide x 7 inches high
