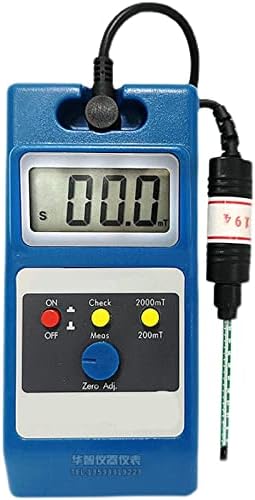

Gaussmeter Tesla EMF Meter Surface Magnetic Field Gauss Meter B387215
Gaussmeter Tesla EMF Meter Surface Magnetic Field Gauss Meter B387215
1.【Range & unit range】: 0 ~ 200MT Tesla~2000MT Tesla; Resolution: 0.1MT millitesla, IMT millitesla; Display unit: MT millitesla.
2.【Accuracy】: Basic error: ± 2% ± 3 (below 1000MT millitesla); ± 5% ± 3 (above 1000MT MT); Note: IMT millitesla = 10GS Gauss.
3.【Temperature & Environment】: Ambient temperature: 5℃- 40℃; Relative humidity: 20% - 80% (no condensation); Measured magnetic field: DC magnetic field (static magnetic field).
4.【Application】: It is suitable for a series of magnetic field tests such as various static magnetic field and DC electromagnetic field measurement, such as: magnet magnetic force measurement, speaker magnetic force test, soft magnetic force test, magnetic separator magnetic force test, magnetic chuck magnetic force test, magnetic pole judgment, etc.
5.【Packing list】: Gaussmeter Tesla meter(WT10A ) * 1; Metal Probe * 1; DC Adapter * 1; User Manual * 1.
Usually the product will be sent in 1-4 working days and takes about 2--7 business days to reach you.
Product introduction:
1.Multiple unit conversion, direct data output without further calculation, 1 millitesla (MT) = 10 Gauss (GS);
2.Integrated ultra-sensitive probe, using imported Hall sensor chip, probes of different specifications can be customized according to requirements;
3.The backlight can be adjusted freely, the LED backlight display is adopted, and the user can adjust the backlight according to the use environment, making the measurement easier;
4.Screen elevation design, the screen combines ergonomics and adopts elevation design, which makes the screen display clearer and more convenient for reading;
5. Magnetic pole identification, automatic identification of NS poles, accurate probe identification instantly;
6. Authoritative measurement certification, the national standard for equipment symbols has passed the certification of the Institute of Metrology.
Parameters:
Model: WT10A
Measurement range: 0 ~ 200MT ~ 2000MT
Output parameters: 0.1MT millitesla, 1MT millitesla
Accuracy grade: soil 2% + 3 (below 1000MT millitesla)
Overall dimension: 15x7x3cm
Weight: 0.5kg
